SPECIFICATIONS

Brand Name: sweideer
Button color: Red Yellow Blue Green White Black
Button contact: 1NO/1NC/1NO1NC/2NO
Certification: CCC,ce,CE,CCC
Choice: yes
Contact material: Silver contact
Current: 10A
Features: 22mm Momentary Self-reset
High-concerned chemical: None
Is Smart Device: No
Item Type: SWITCHES
Material: Plastic
Model Number: XB4 Push Button Switch with Light/No Light
Opening diameter: 22MM
Operation mode: Momentary self-reset
Origin: Mainland China
Product name: Push Button Switch
Rated current: 10A
Switch Type: Push Button Switch
Voltage Available: 12V,24V,220V
Warranty: 1 Year
semi_Choice: yes

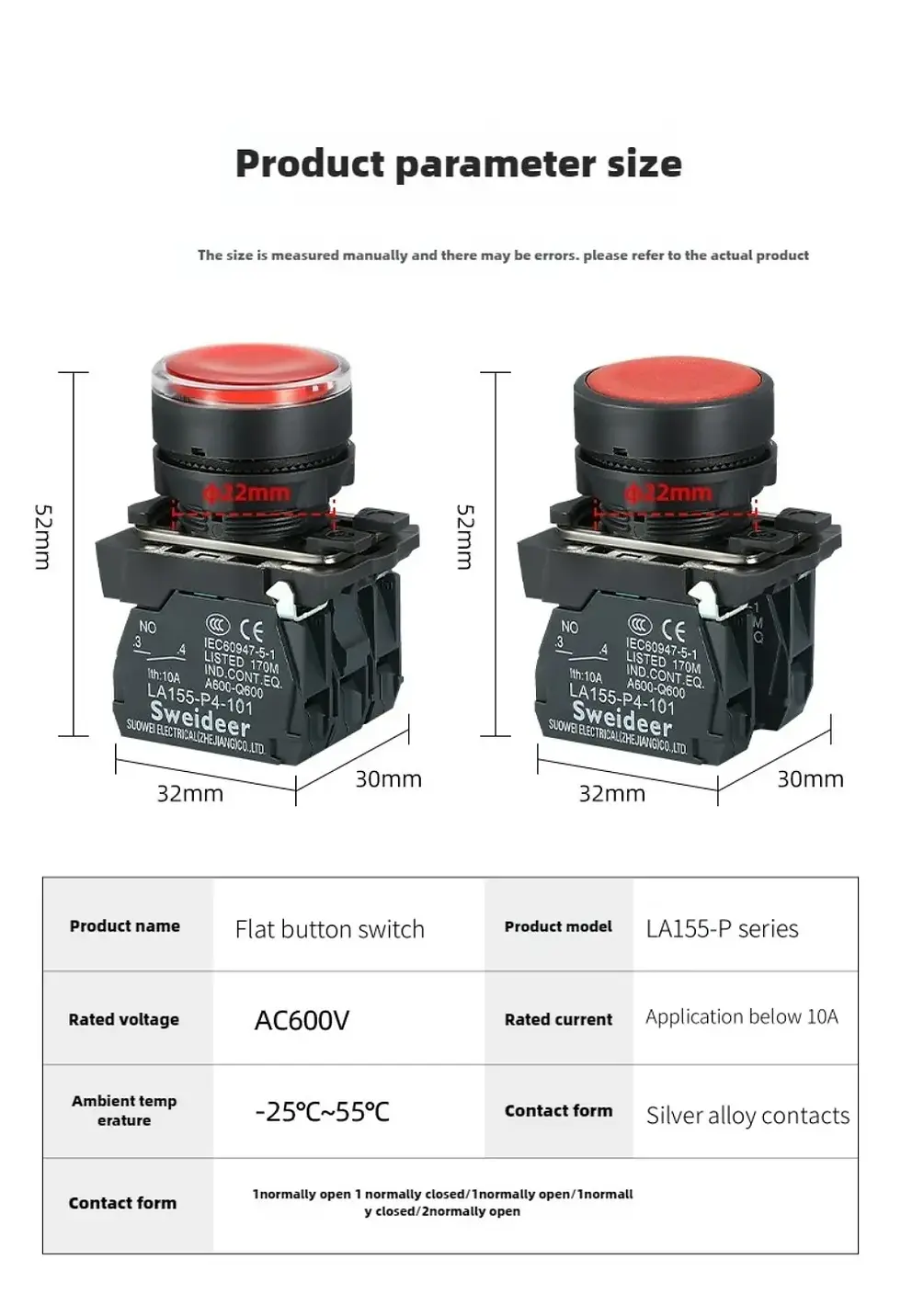

Product Specification
Product name: Push Button Switch
Contact material: Silver contact
Rated current: 10A
Opening diameter: 22mm
Button contact: 1NO/1NC/1NO1NC/2NO
Operation mode: Momentary self-reset
Button color: Red Yellow Blue Green White Black
Voltage Available: 12V,24V,220V

Package Content
1pc Push Button Switch

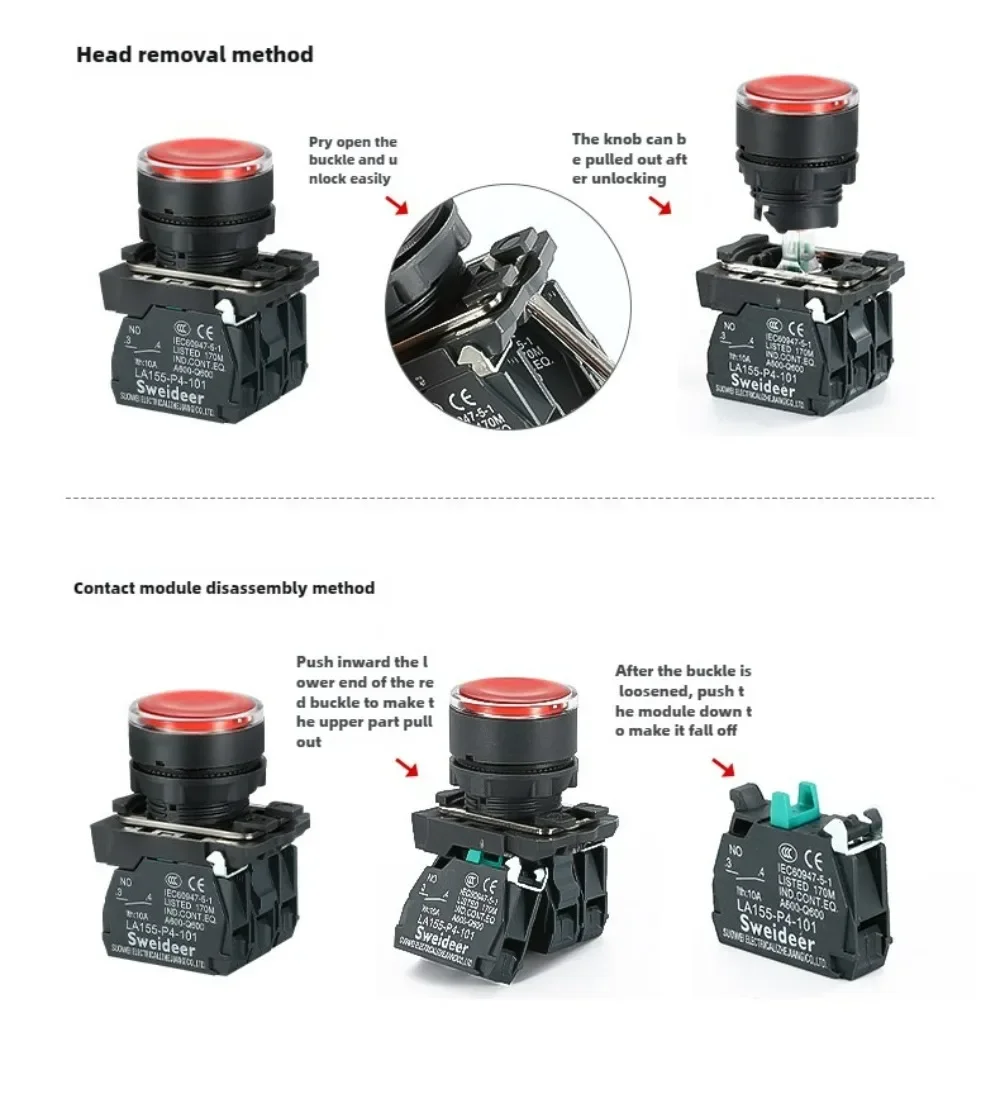

Contact modular combination

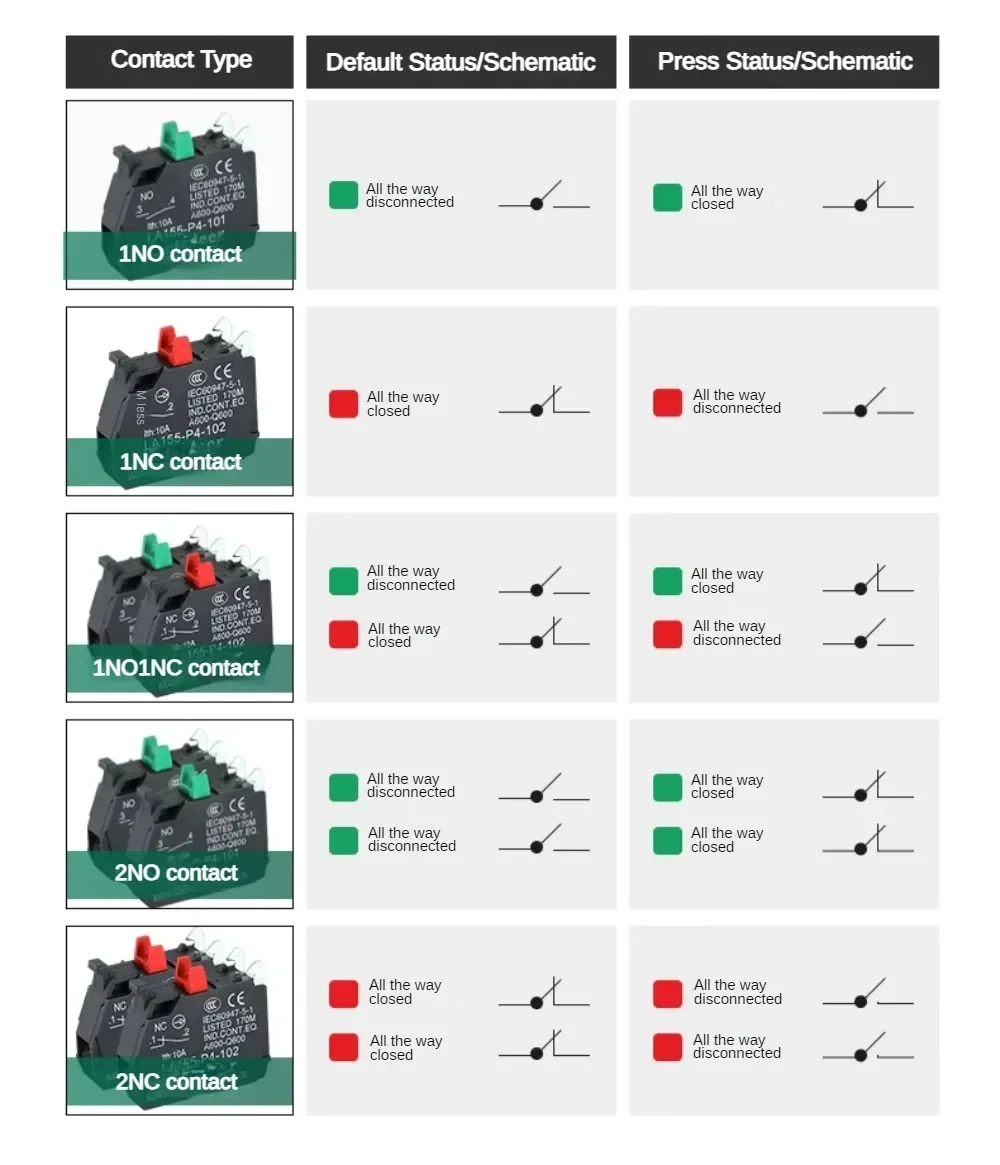

NO(normally open) and NC(normally closed ) contact can replace and add at any time .It can hold 1-6 pcs Contact modules at most.

NO(Normally open contact ): Normally in off state, press to power on.
NC(Normally closed contact): Normally in on state, press power off.
Self reset: Once pressed, the button will reset and spring back as soon as the hand is released.
