SPECIFICATIONS

Brand Name: Your Cee
Certification: None
High-concerned chemical: None
Model Number: MOS FET Trigger Switch Drive Module
Motor: DC Motor
Motor Type: DC Motor
Origin: Mainland China
Power Supply: DC

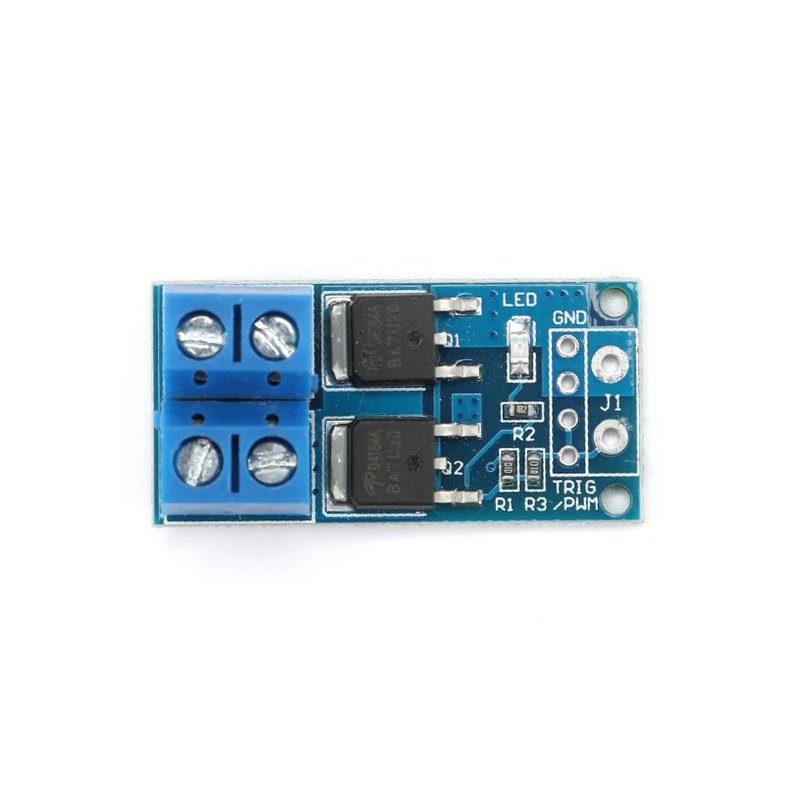

15A 400W MOS FET Trigger Switch Drive Module DC 5V-36V PWM Regulator Control Panel Motor control board

 Module highlights:

 1. It adopts imported dual MOS parallel active output, with lower internal resistance, larger current and strong power. It is 15A and 400W at normal temperature, which satisfies the use of most equipments;

 2. Wide voltage, perfect support for PWM;

 3. Easily control the high-power equipment.

 1: Working voltage: DC 5V--36V;

 2: Trigger signal source: digital high and low level (DC3.3V--20V), can be connected to single-chip IO port, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0--20KHZ perfect support.

 3: Output capacity: DC DC 5V--36V, continuous current 15A at normal temperature, power 400W! The maximum current can reach 30A under auxiliary cooling conditions.

 4: Application: The output can control high-power equipment, motor, bulb, LED strip, DC motor, micro pump, solenoid valve, etc. It can input PWM, control motor speed, brightness of lamp and so on.

 5: Service life: unlimited switch; working temperature: -40-85 ° C; size: 3.4 * 1.7 * 1.2 cm

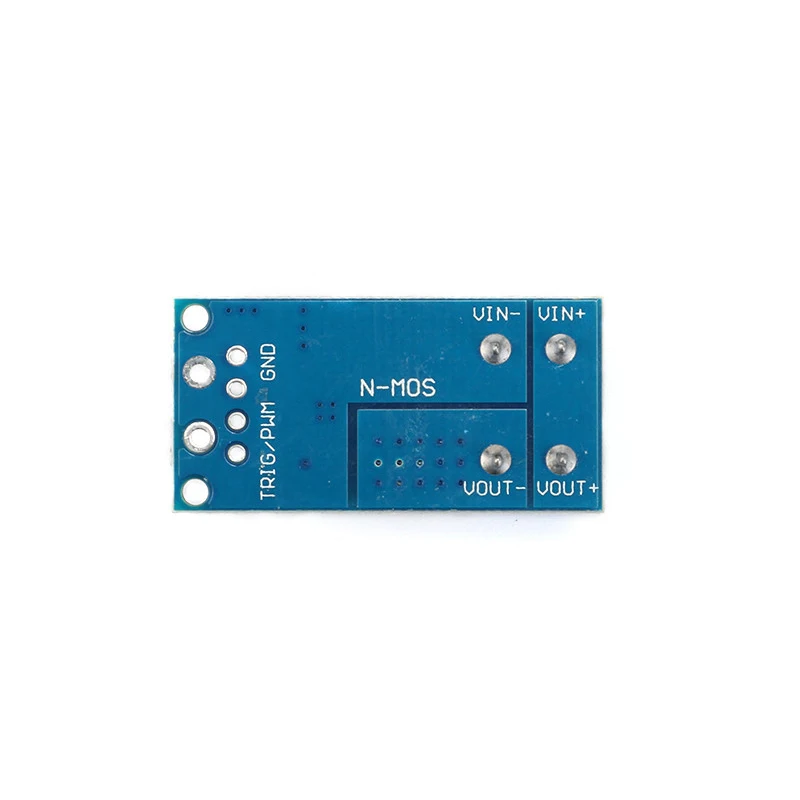

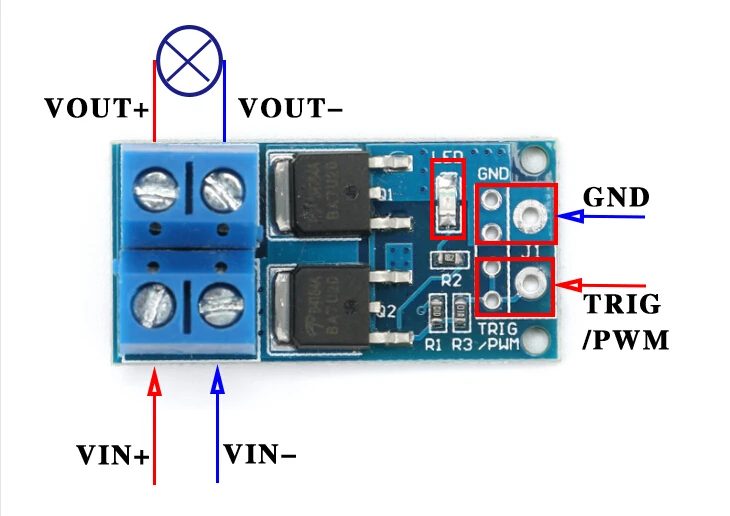

  TRIG / PWM: signal control terminal



  GND: Signal ground



  VIN +: Power input positive



  VIN-: Power input negative



  VOUT +: Power supply positive



  VOUT-: The power output is negative
