SPECIFICATIONS

Application: Computer,Computer
Brand Name: BMHM
Choice: yes
Condition: New,New
Dissipation Power: 5A,5A
Model Number: MOS FET 4 Channel,MOS FET 4 Channel
Origin: Mainland China,Mainland China
Supply Voltage: 5V36V,5V36V
Type: Logic ICs,Logic ICs
semi_Choice: yes

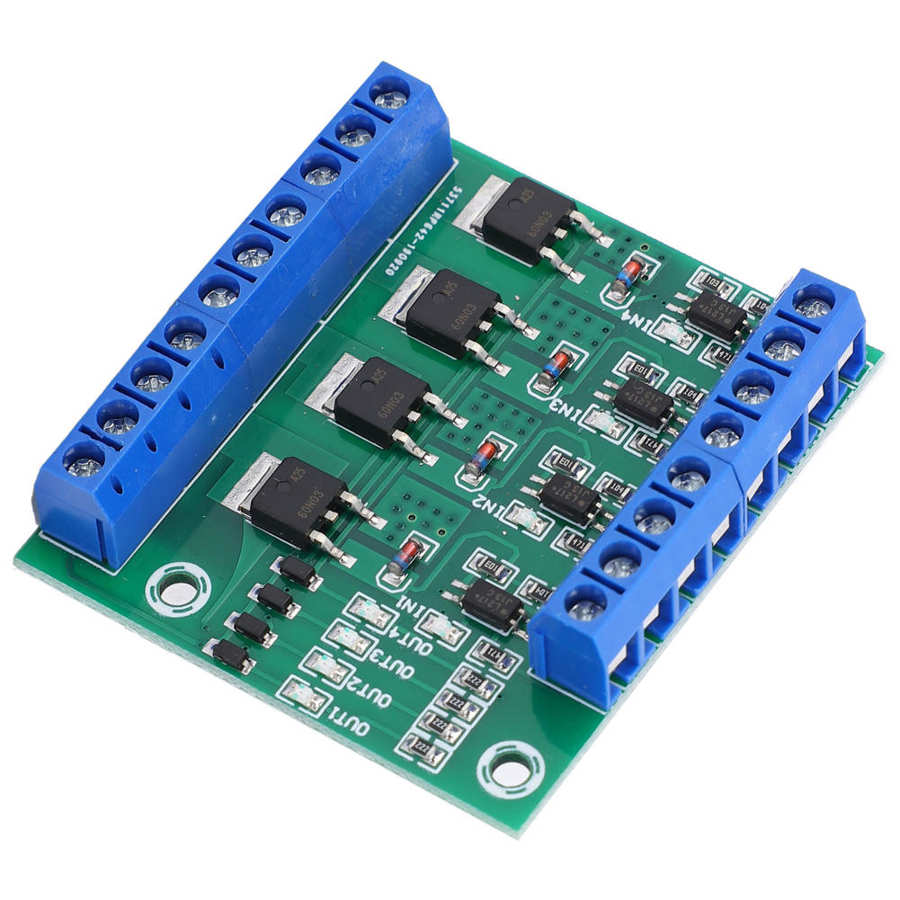

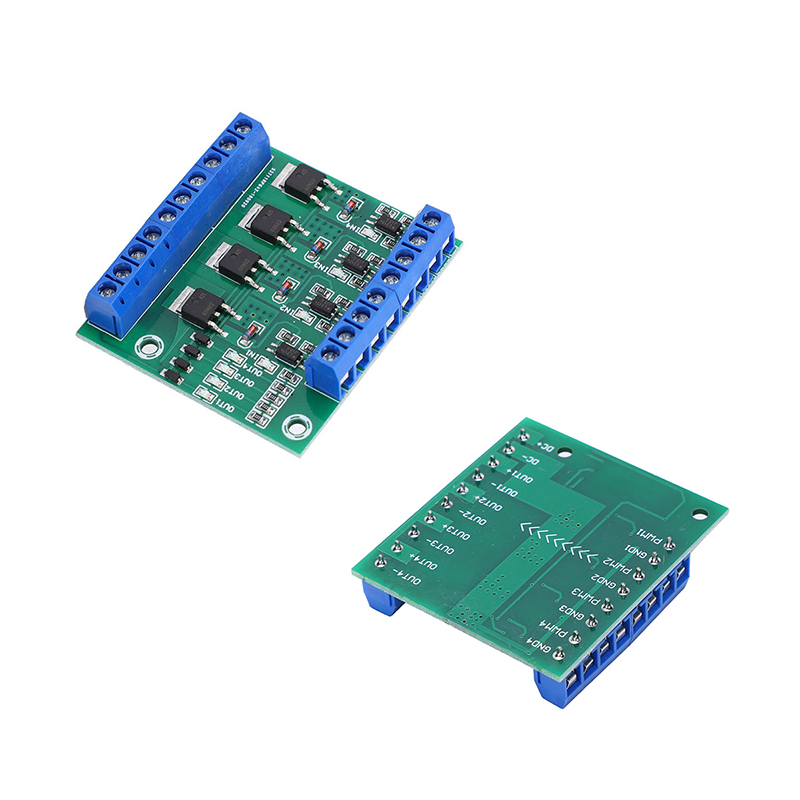

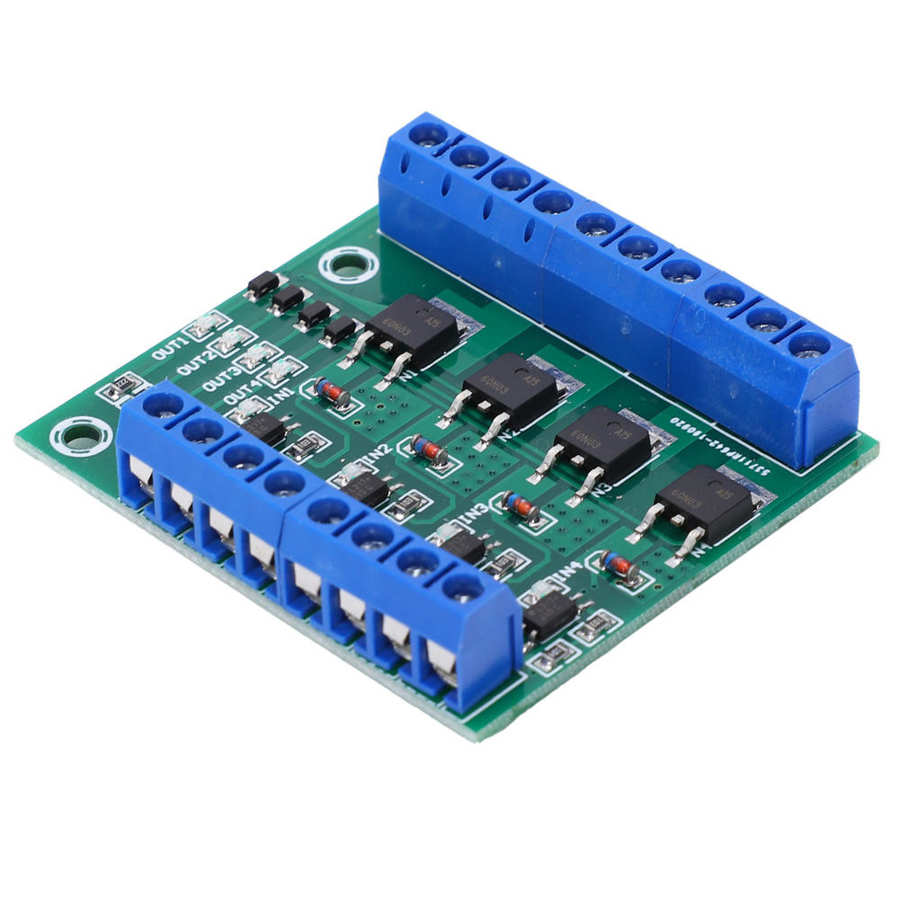

1: Product model: YYNMOS-4, using high-quality ultra small optocoupler, with strong anti-interference ability, stable performance, and complete isolation between input signal and output.

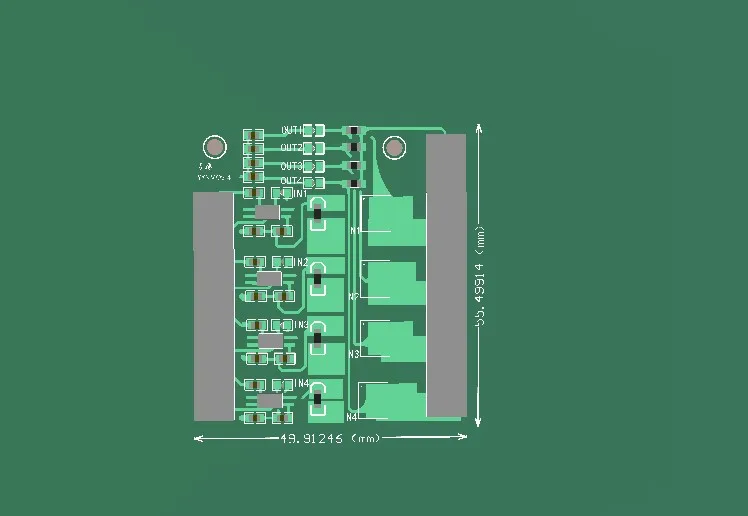

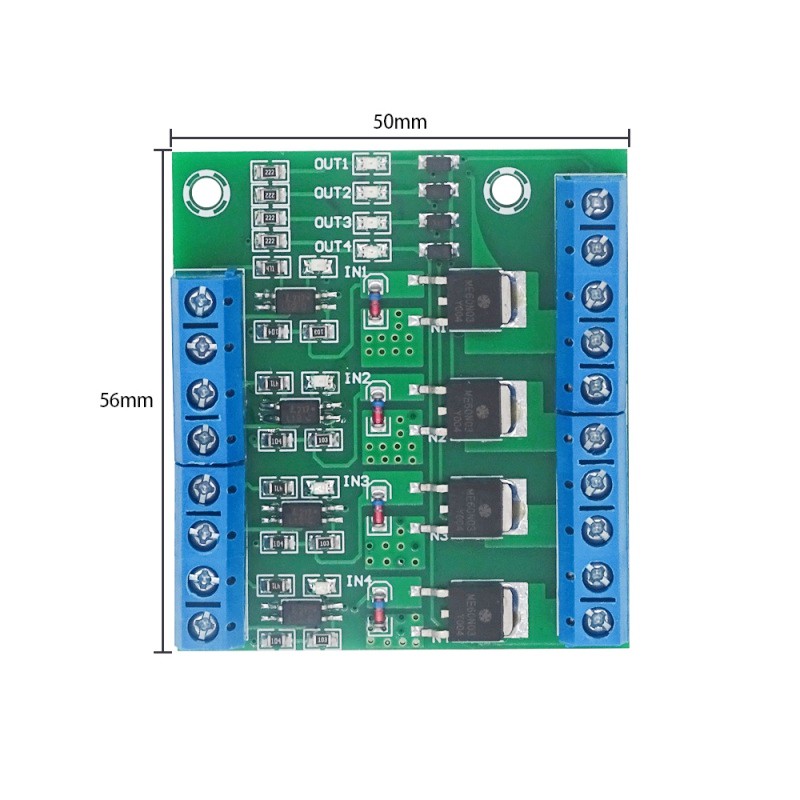

Size: 5.5 * 5CM length * width
2: Input signal: PWM signal between 3~20V
3: Output capacity: DC 3.7V~27V, current within 10A per circuit
4: PWM frequency: 0-20KHZ
5: Indicator light: with input signal and output indicator light
6: Application Description: The output terminal can control high-power devices such as motors, light bulbs, LED light strips, DC motors, micro water pumps, solenoid valves, etc. It can input PWM to control motor speed, lamp brightness, etc.

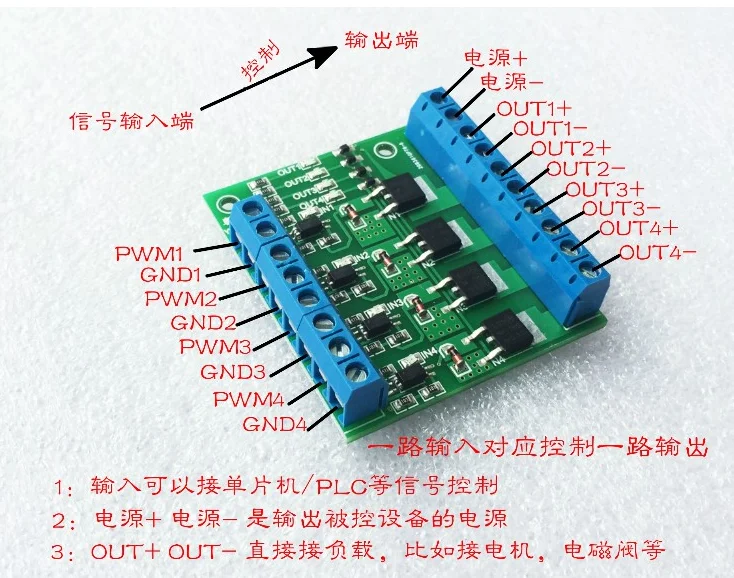

7: Module interface description:
1. DC+: positive pole of equipment DC power supply
2. DC -: Negative pole of equipment DC power supply
3. PWM: Signal input terminal (connected to microcontroller IO port, PLC interface, DC power supply, etc.)
4. GND: Signal negative extreme
5. OUT+: Output terminal positive pole (connected to device positive pole)
6. OUT -: Output terminal negative electrode (connected to device negative electrode)
