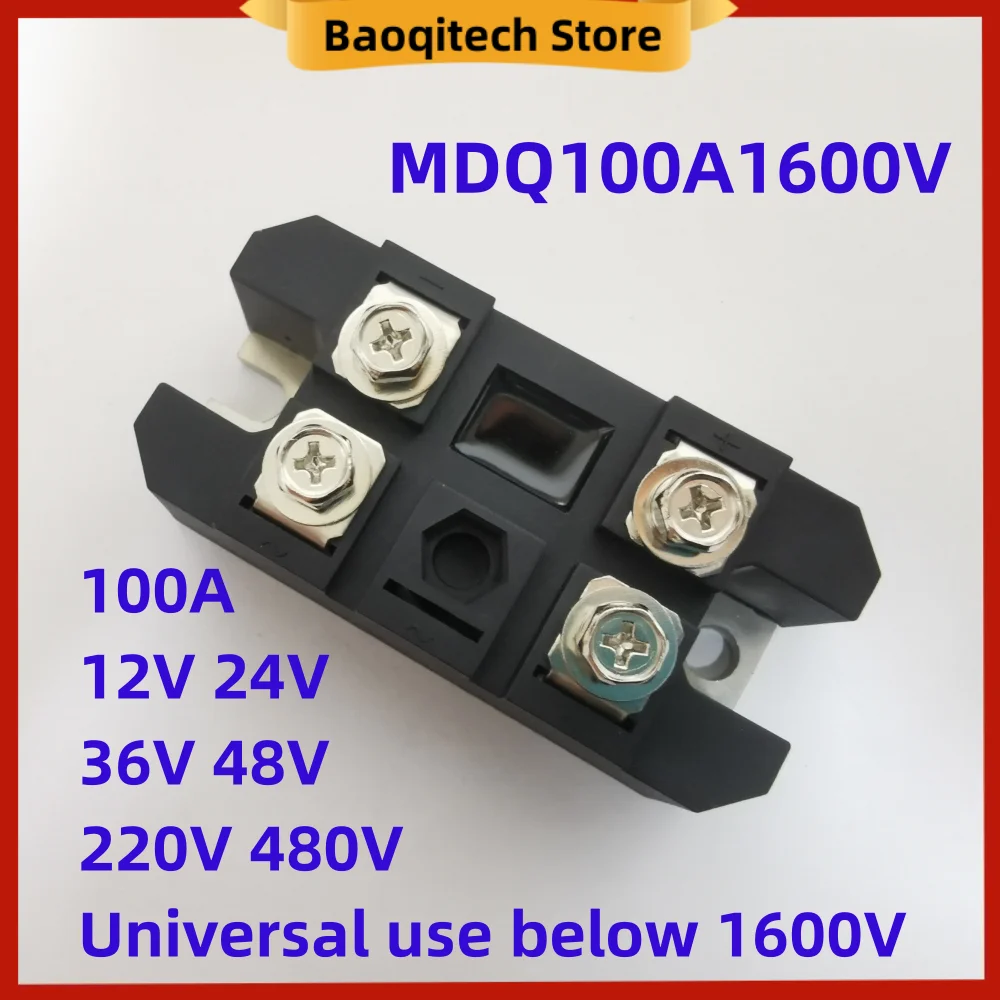

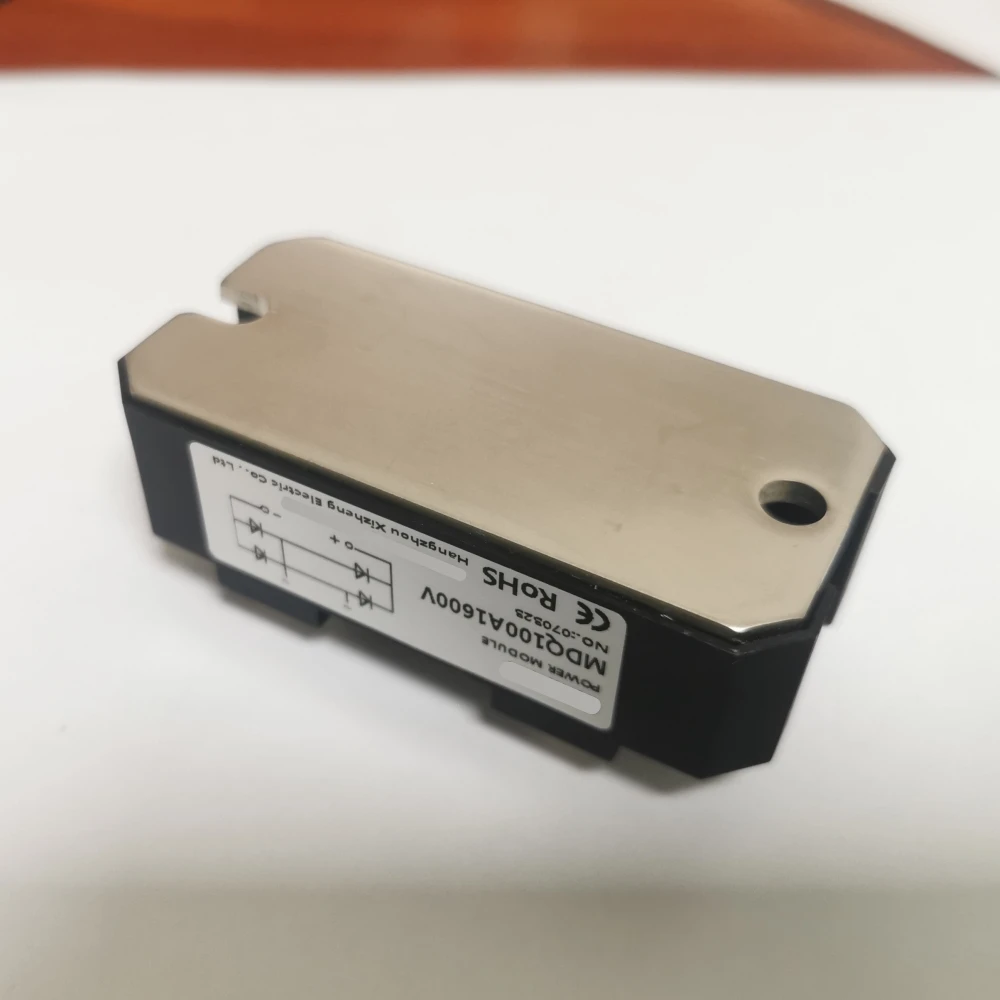

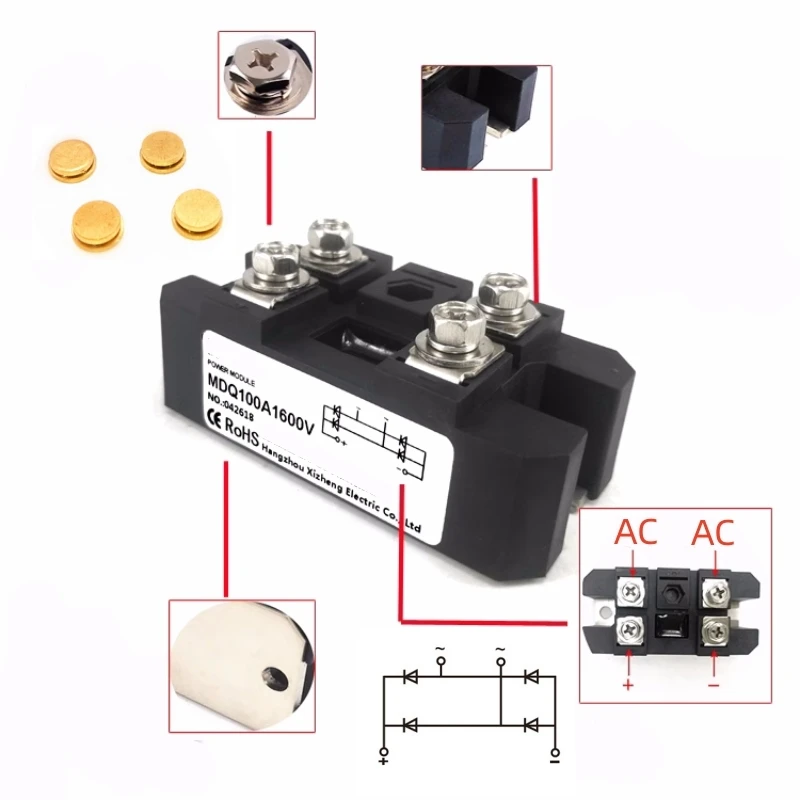

MDQ100A1600V single-phase rectifier bridge 12V 24V 36V 48V 220V 480V AC-DC module 100Amp 1600V
reminder
1. About product selection
The marked current of the power module is the average value of the on state, not the actual effective value of long-term operation. When selecting, sufficient margin should be left based on the actual working environment and conditions.
(1) Pure resistive load 2-2.5 times margin: actual current (A) × 2 (~2.5)=Module nominal current (A) (2) Inductive load 6-7 Signal margin: Actual current (A) × 6 (~7)=Module nominal current (A)

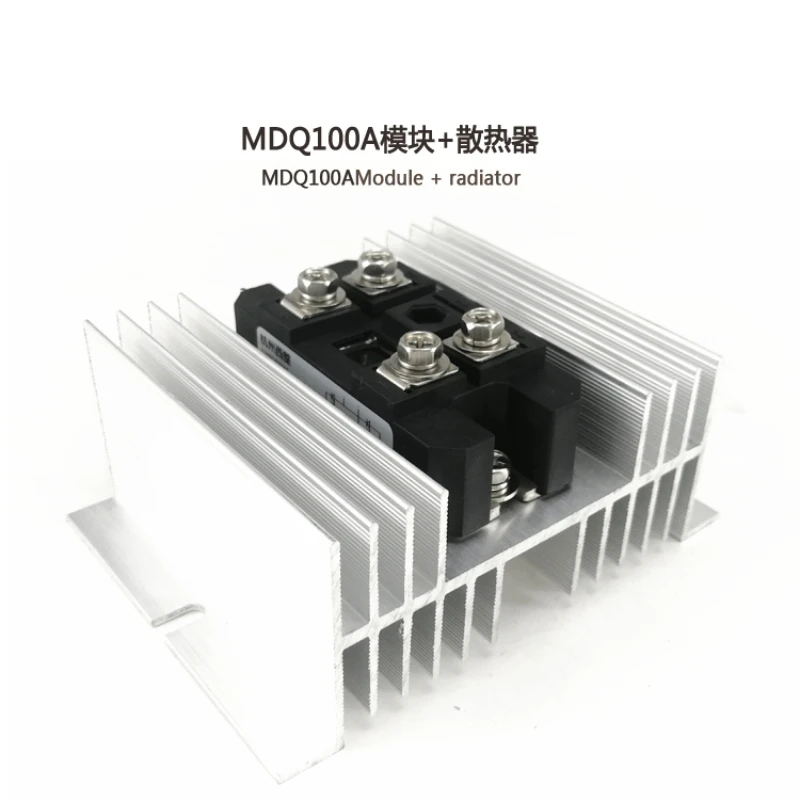

2. Radiator configuration
When the actual working current of the device is greater than 5A, please be sure to configure a suitable heat sink for use
3. Regarding the source of goods
Regular models are available in stock and can be sold directly. For bulk orders, please inform customer service of the quantity ordered and confirm the delivery time with them.
