SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Features: Slide Switch

High-concerned chemical: None

Is Smart Device: No

Item Type: SWITCHES

Material: Copper

Model Number: SS-12D10G3-G7

Name1: 20PCS Switch

Name10: Foot Distance 4.7mm Switch

Name11: AC125~250V 1A~10A Switch S

Name2: SS12D10 Switch

Name3: Toggle Switch

Name4: SS12D10G3-G7 Switch

Name5: (1P2T) Switch

Name6: Single Row Switch

Name7: 3 Legged 2 Gear Switch

Name8: Vertical Insertion 7mm Switch

Name9: 4.3*8.7*4.7H Switch

Origin: Mainland China

Switch Type: Toggle Switch

Warranty: 10000 Cycles

semi_Choice: yes

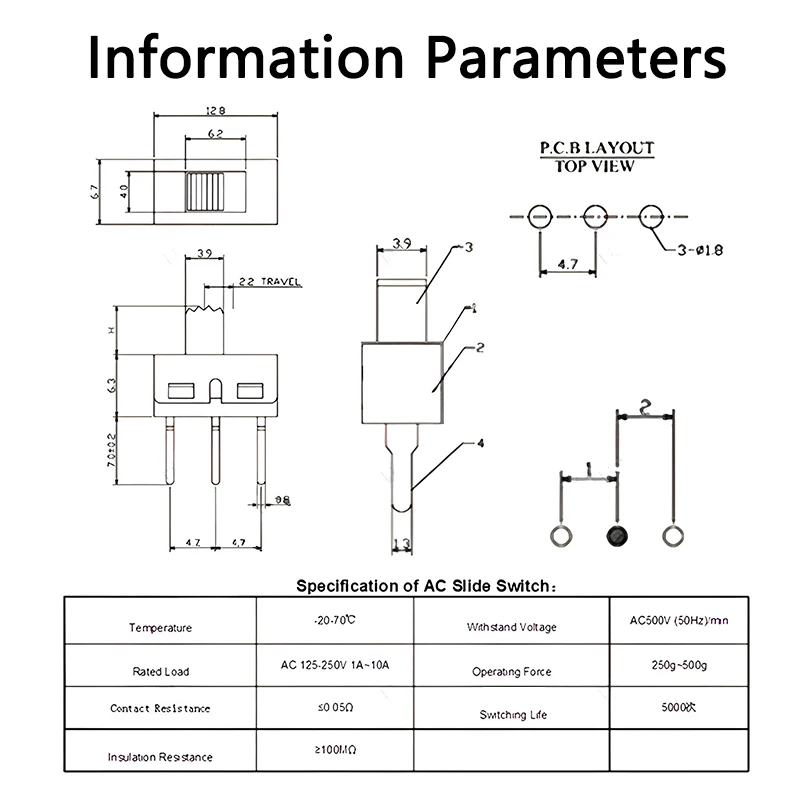

Main Technical Specifications Of SS-12D10 Sliding Switch

Materials: Plastic, Stainless Steel, Copper Alloy
Rated Load:AC 125-250V 1A-10A
Operating Temperature: -20-70 ℃
Contact Resistance: ≤ 50m Ω
Insulation Resistance: ≥ 100m Ω
Voltage Withstand: Ac500V (50Hz)/Min
Operating Force: 250g-500g
Service Life: ≥10000Times
Packaging: 20 PCS

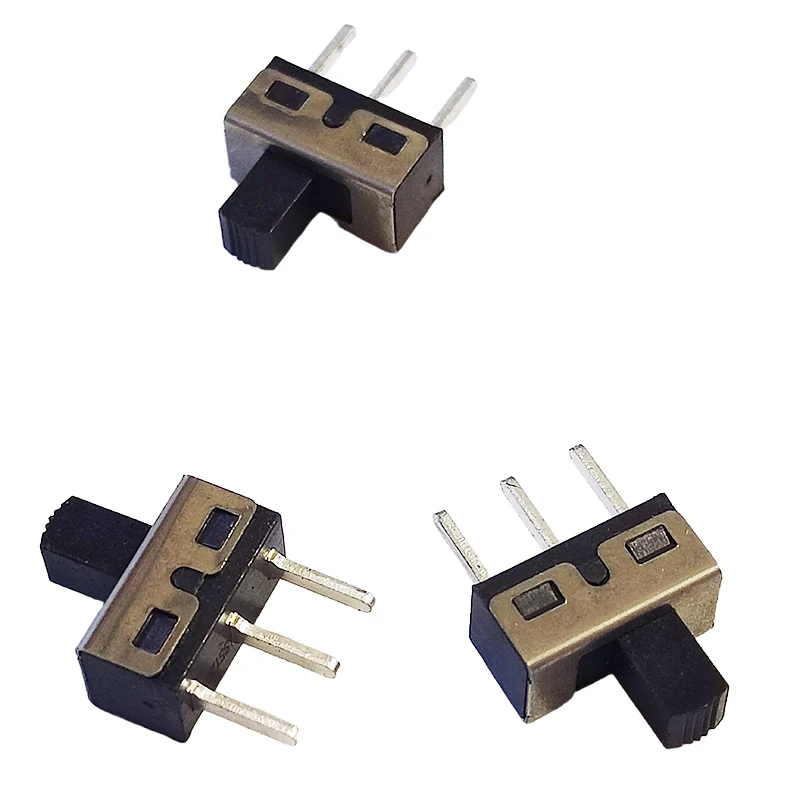

SS-12D10 Sliding Switch

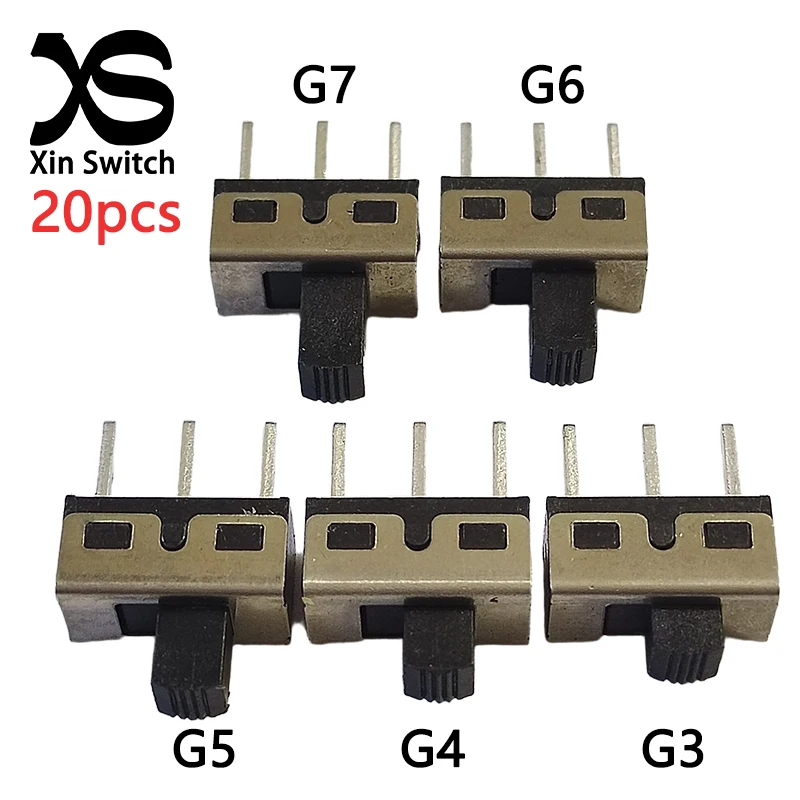

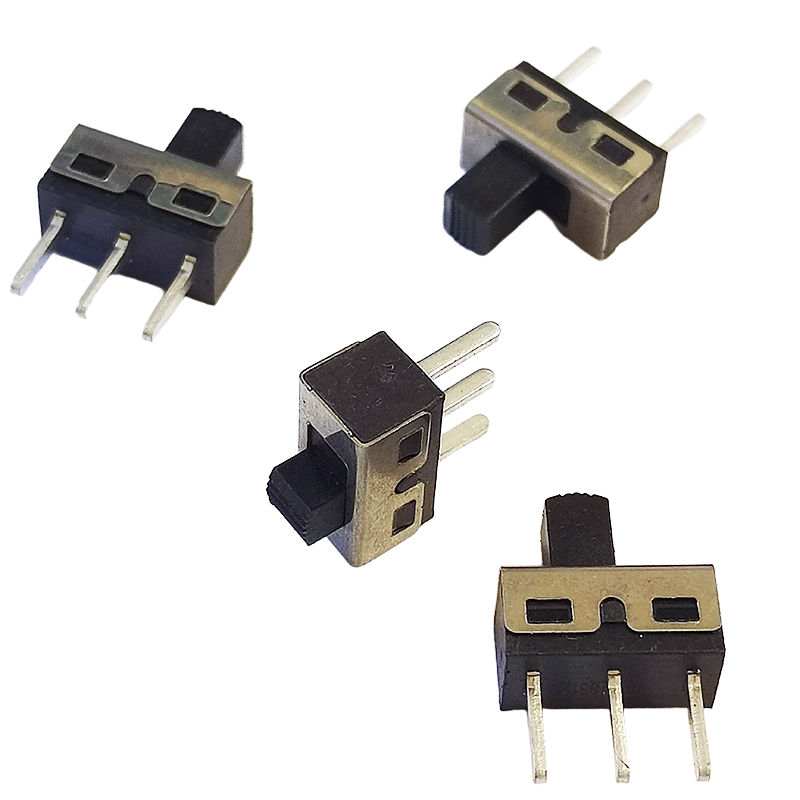

20PCS SS12D10 Toggle Switch G3-G7 Single Row 3 Legged 2 Gear (1T2P) Vertical Insertion 7mm Foot Distance 4.7mm AC125~250V 1A~10A
