SPECIFICATIONS

Brand Name: NoEnName_Null
Choice: yes
Features: Self-Locking
High-concerned chemical: None
Is Smart Device: No
Item Type: SWITCHES
Material: Plastic
Model Number: KFT-7.0(7mmx7mm)
Name1: 20PCS Switch
Name12: ON-OFF Switch
Name2: 7x7 Switch
Name3: Self Locking Switch
Name4: Minitype  Switch
Name5: Power Button  Switch
Name6: KFT-7.0  Switch
Name7: High/Flat Head  Switch
Name8: Single Row 2/3pin Double Row 6pin Switch
Name9: 30VDC/0.1A Switch
Origin: Mainland China
Switch Type: Push Button Switch
Warranty: 10000 cycles
semi_Choice: yes

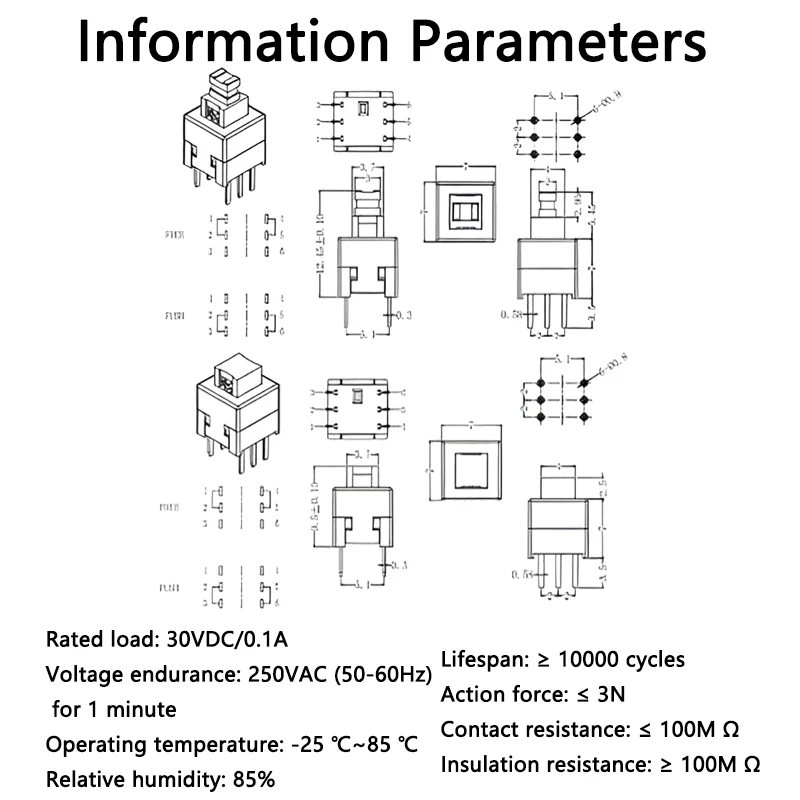

Main Technical Specifications Of KFT-7.0(7mmx7mm) Button Switch

Rated load: 30VDC/0.1A

Voltage endurance: 250VAC (50-60Hz) for 1 minute

Operating temperature: -25 ℃~85 ℃

Relative humidity: 85%

Lifespan: ≥ 10000 cycles

Action force: ≤ 3N

Contact resistance: ≤ 100M Ω

Insulation resistance: ≥ 100M Ω

KFT-7.0(7mmx7mm) Button Switch

20PCS 7x7 Self Locking Minitype Power Button Switch KFT-7.0 High/Flat Head Single Row 2/3pin Double Row 6pin 30VDC/0.1A ON-OFF

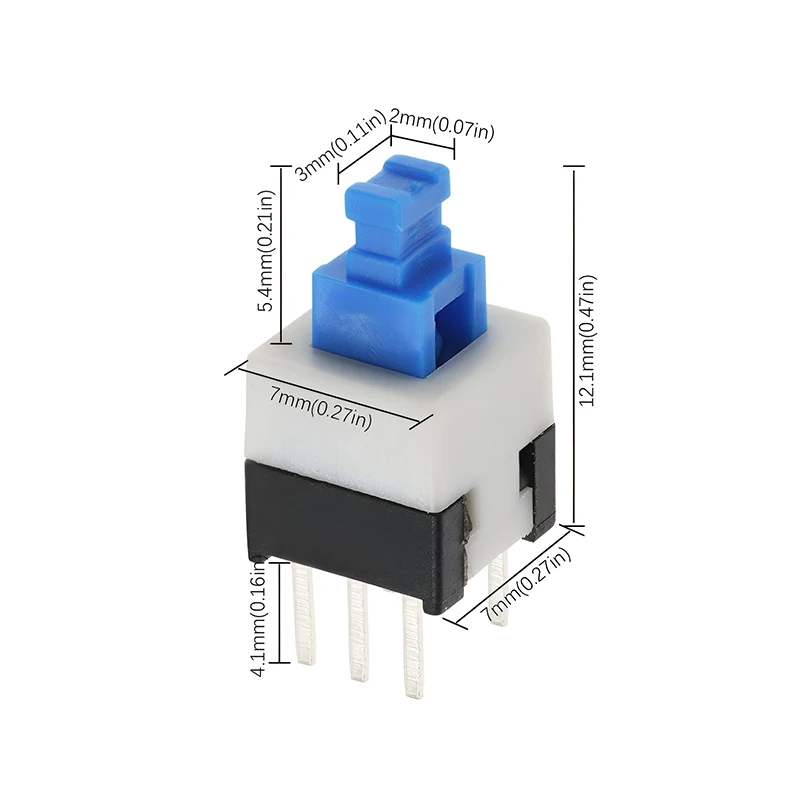

Switches Size
