SPECIFICATIONS

Brand Name: VaneAims
Choice: yes
Feature 1: Ultra short button switch
Feature 2: button switch with wire
Feature 3: metal push button
Feature 4: switch push button
Feature 5: waterproof button switch
Feature 6: momentary switch without fixation
Feature 7: Wiring Electric button switch
Features: Waterproof
High-concerned chemical: None
Is Smart Device: No
Item Type: SWITCHES
Material: Stainless Steel

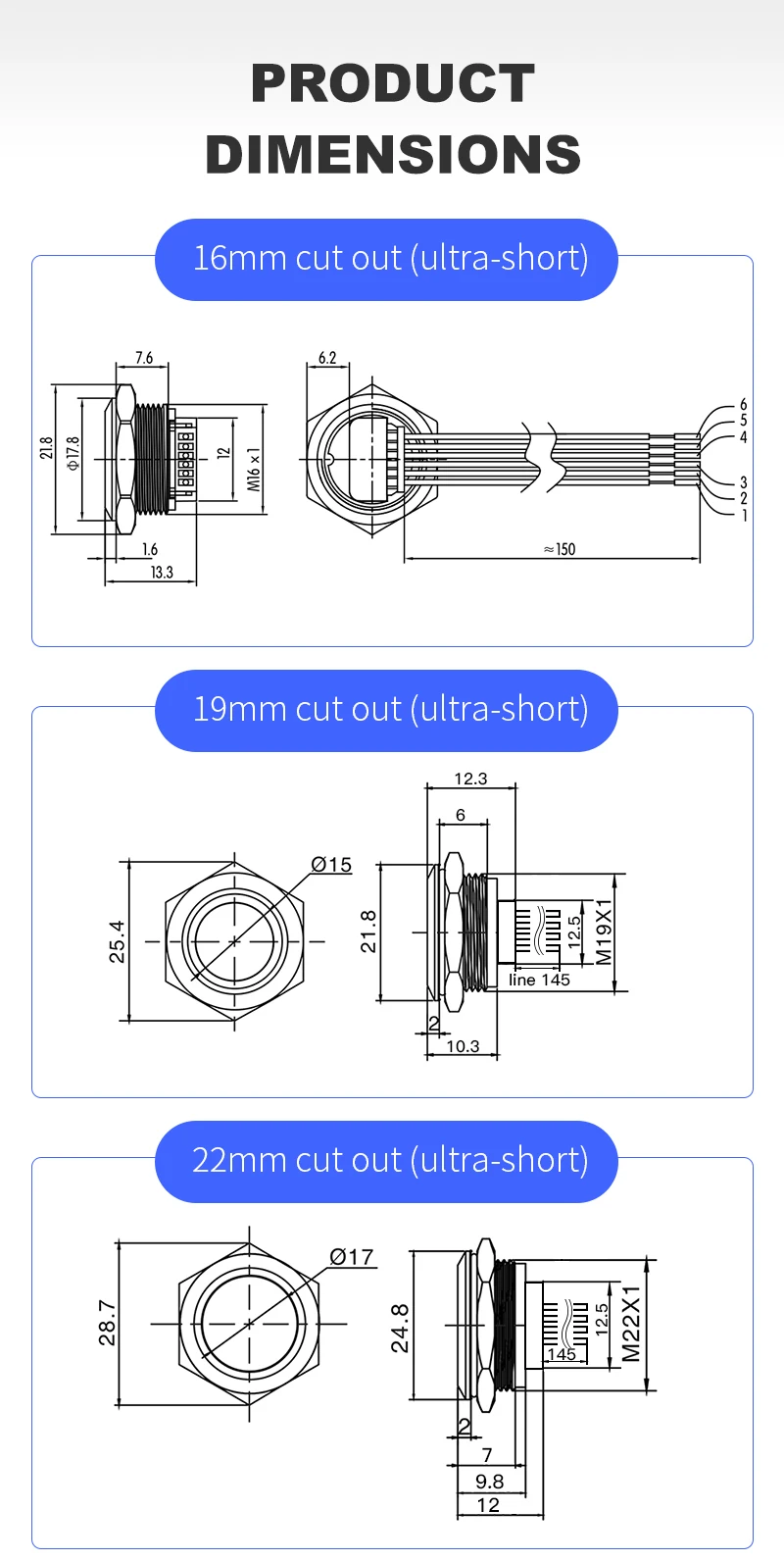

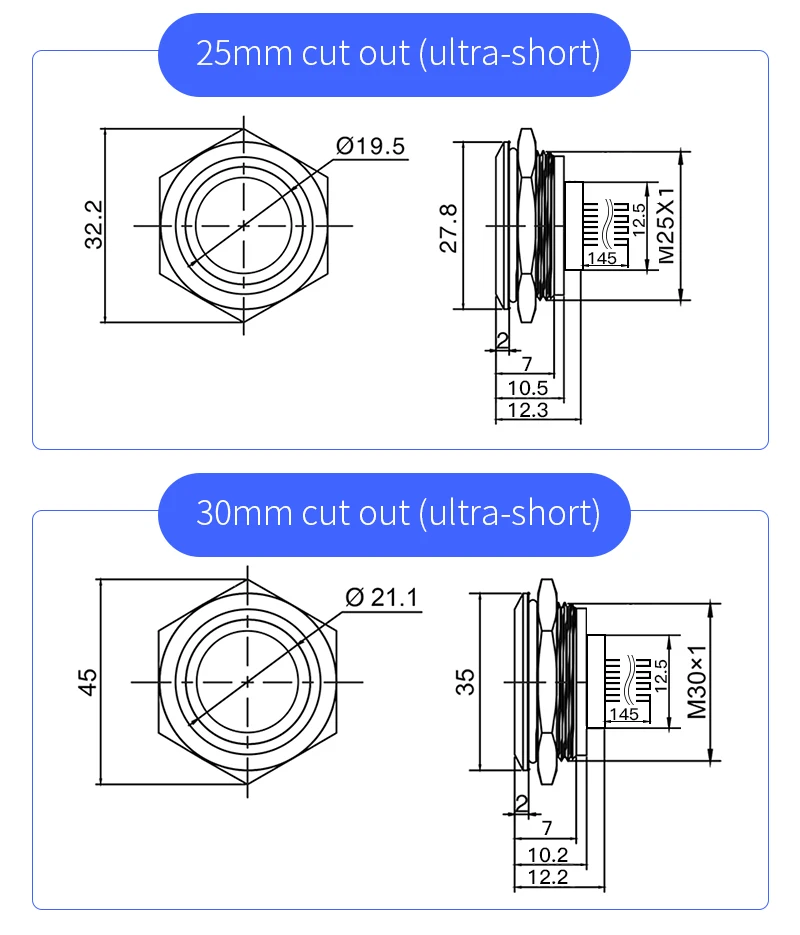

Mounting Diameter: 19mm/22mm/25mm/30mm
Operation type: Momentary Self-reset (no fixed)
Origin: Mainland China
Switch Type: Push Button Switch
semi_Choice: yes

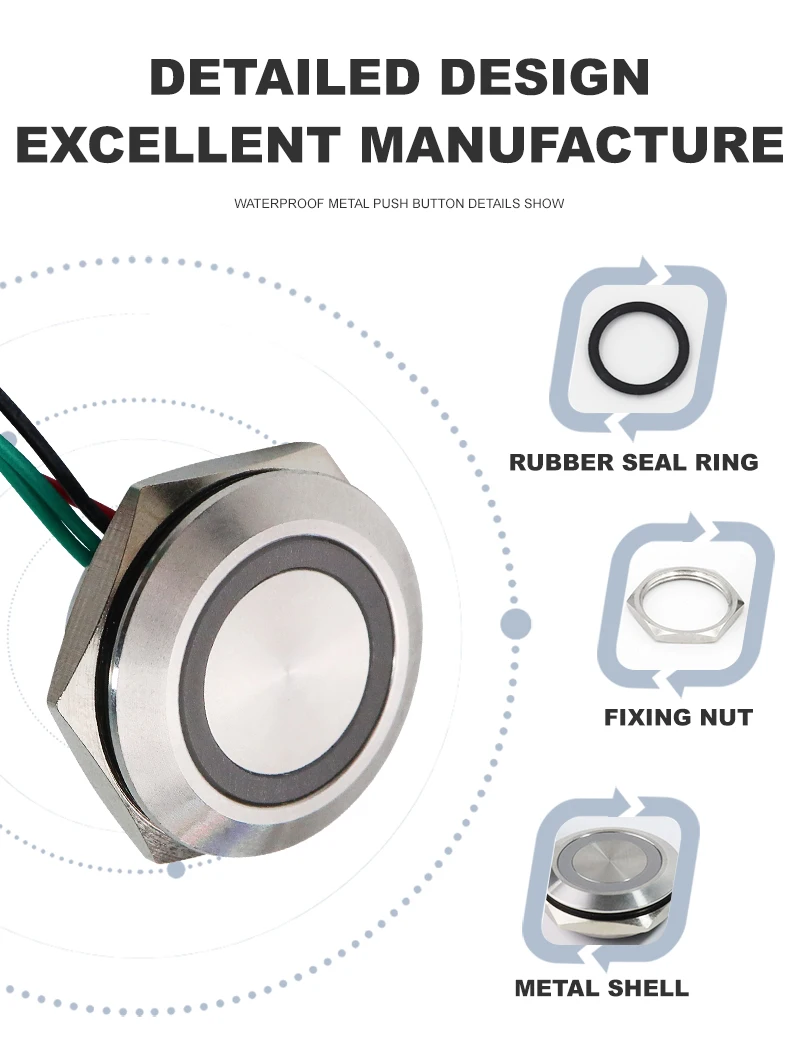

SILVER Shell: The material is stainless steel, which is characterized by corrosion resistance and long appearance life.





BLACK Shell: The material is Aluminum Alloy.





This button is a momentary button switch(Jog switch). It means that the power is only applied when the button is pressed. Once the hand is released, the button switch is automatically reset and the power is off. (Computer button and doorbell button all have this function)





The bicolor/ tricolor button means that when the corresponding input terminal is powered on, the corresponding color will light up, not at the same time.








The key stroke of the product is ultra-short, the volume is ultra-thin, and the rated current is 1A.

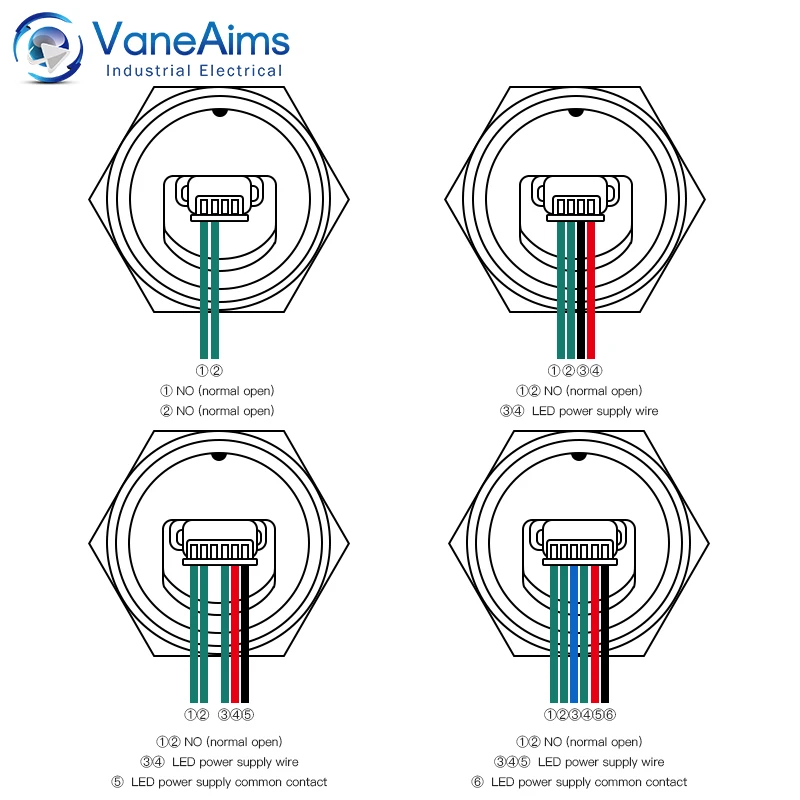

NO LED Type: 2 wires


With Single LED Type: 4 wires


With Bicolor LED Type: 5 wires


With Tricolor LED Type: 6 wires


















①② NO(normally open contact)


Bicolor Light Wiring Diagram: Only one of the two dotted lines can be connected. Connecting different contacts makes the light color different [③④---LED power supply line / ⑤---LED power supply common contact]
