SPECIFICATIONS

Application Scope: Electronic devices
Brand Name: LS
Certification: CE
Choice: yes
Current: 3A
High-concerned chemical: None
Housing color: silver
Is Smart Device: No
Item Type: SWITCHES
Material: Copper
Mechanical Life: More than 200,000 times
Model Number: 250312
Opening diameter: 16 mm/19 mm/22 mm
Operating Temperature: -20 ℃  65 ℃
Origin: Mainland China
Scenario application: Industrial Automation & Equipment Manufacturers / Instrumentation & Control Panel Manufacturers / Medical Devices, Geeks & Advanced DIY Enthusiasts / Marine & Offshore Engineering / Automotive/Motorcycle/Racing Car Modifications, Electrical Engineering / Food & Beverage & Pharmaceutical
Switch Type: Push Button Switch
Switching contacts: crew cut
Warranty: 12Months

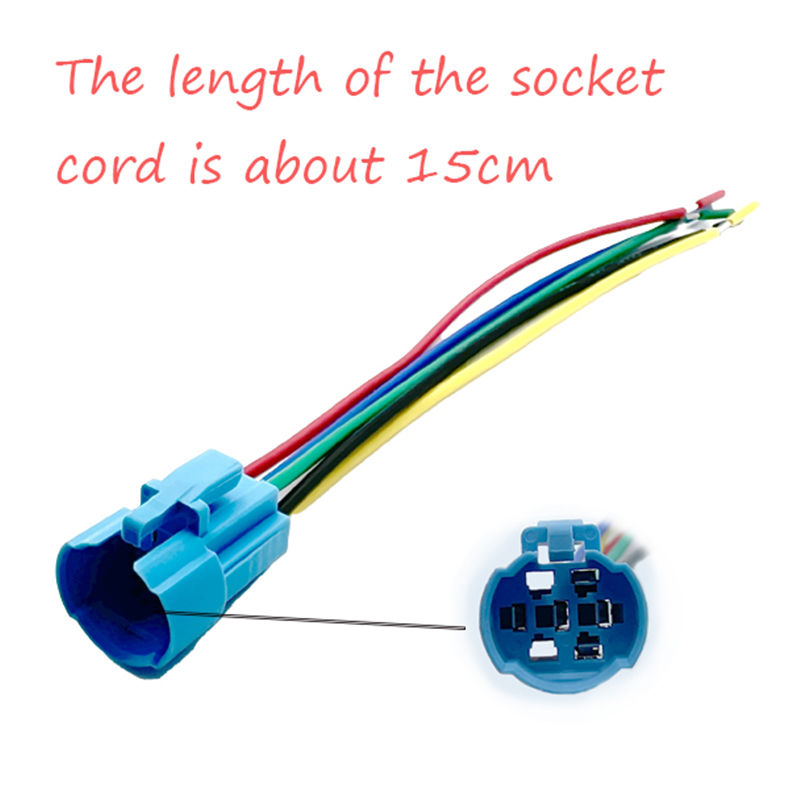

connector: are equipped with connectors
function: MOMENTARYSELF-RESET/FIXEDSELF-LOCKING
semi_Choice: yes

Description

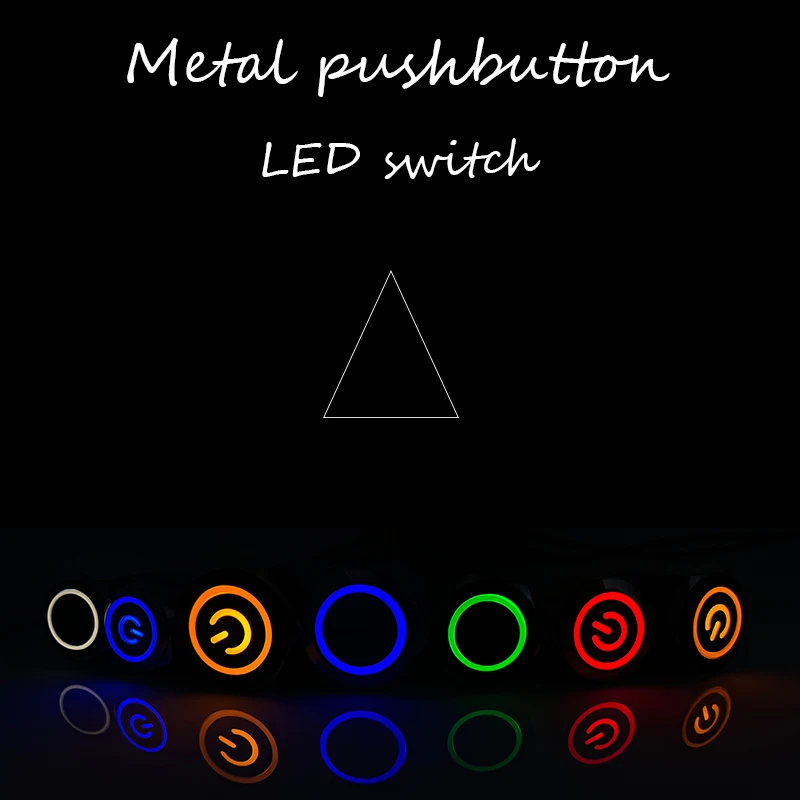

5 LED Colors: Red, Yellow, Blue, Green, White for clear visual status feedback.

Durable Metal Housing: Built to last with a rugged metal construction for reliable performance.

Color Customization: Choose from multiple LED colors to match your style and application.

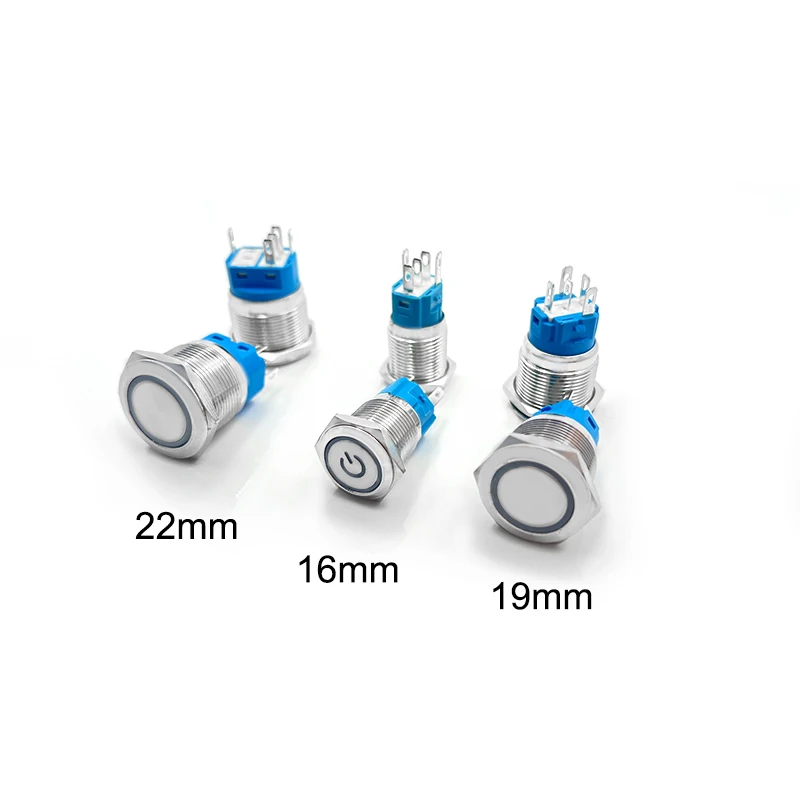

3 Sizes (16/19/22mm): Flexible sizing ensures a perfect fit for various equipment and panels.

1NO1NC Switch: Provides precise start-stop control for industrial and electronic devices.

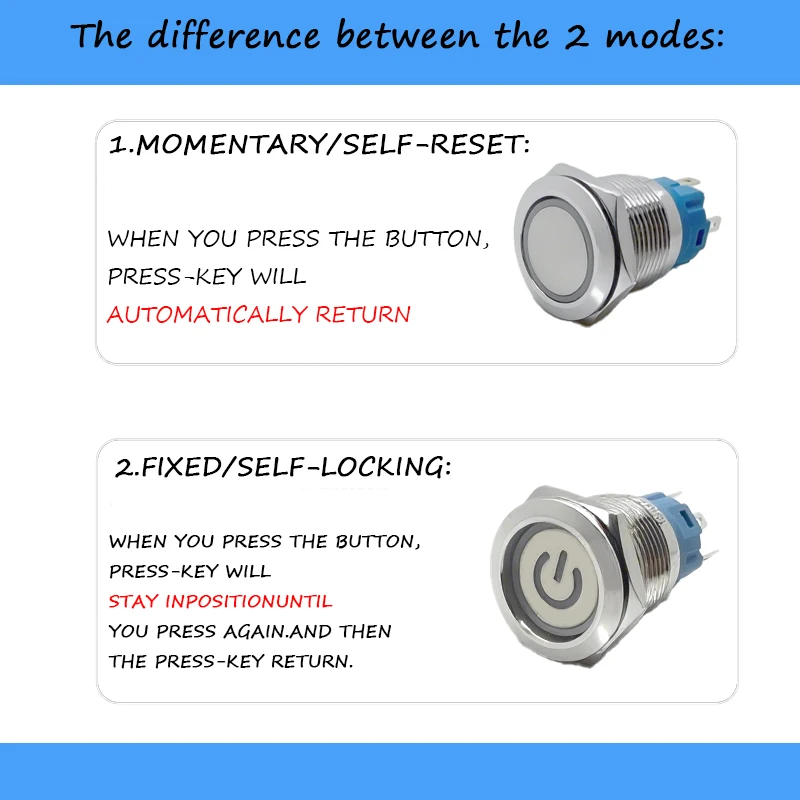

The difference between instantaneous self-reset and locking self-locking:
Momentary (SELF-RESET)

Operation: The circuit is only completed while the button is pressed. It automatically returns to its original position and breaks the circuit once released.

Key Feature: Provides temporary, instant activation. Ideal for short-term signals or commands.

Common Use: Car horns, doorbells, reset buttons, testing equipment.

Latching (SELF-LOCKING)

Operation: The switch changes state with each press. The first press turns it ON and locks the state; the second press turns it OFF and returns it to the original state.

Key Feature: The switch maintains its ON or OFF state without needing constant pressure, perfect for toggling functions.

Common Use: Power on/off switches, light switches, device control.

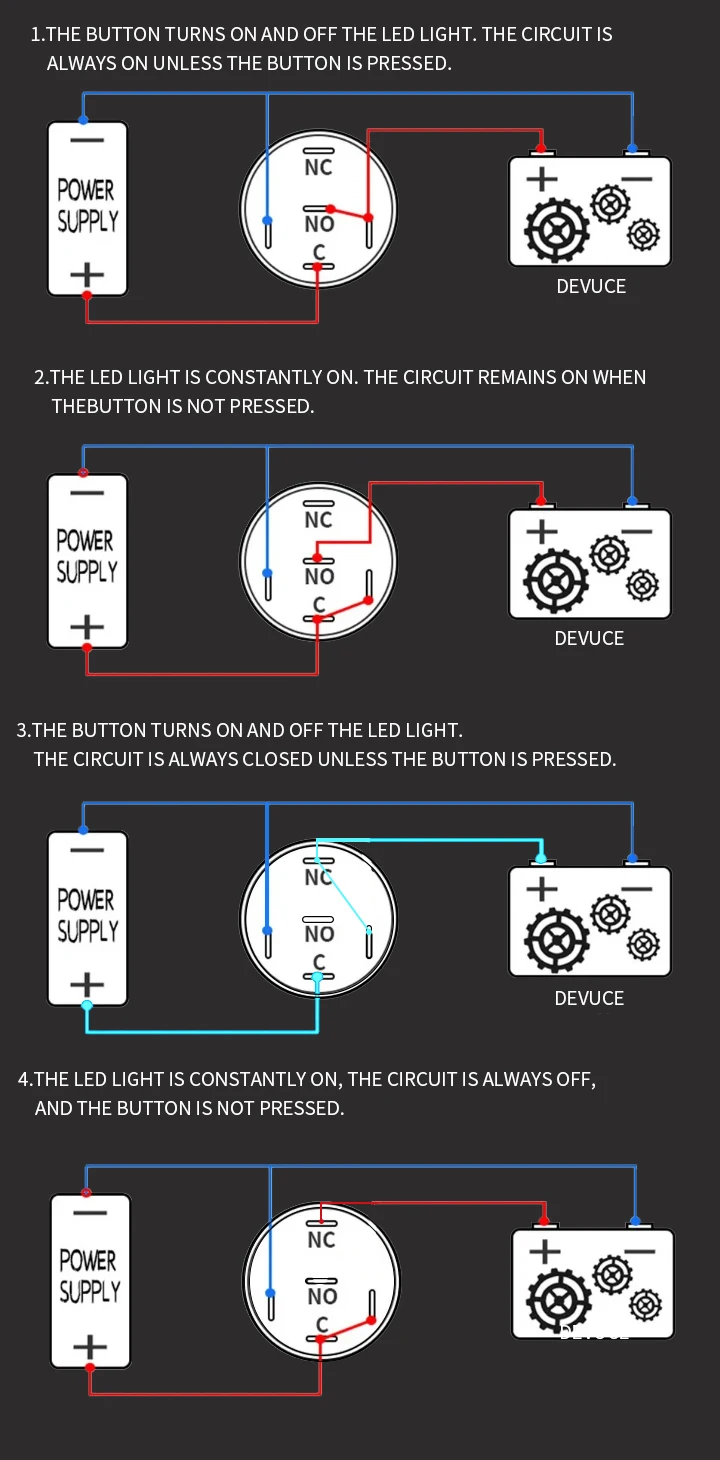

Wiring Instructions
Understanding the Terminals: C, NO, NC

C (Common): This is the central and most important terminal. It is the common input point for the electrical current.

NO (Normally Open): This terminal is disconnected from the Common (C) when the button is not pressed. When you press the button, it connects to C, completing the circuit. (Used for "ON" operation in momentary mode).

NC (Normally Closed): This terminal is connected to the Common (C) when the button is not pressed. When you press the button, it disconnects from C, breaking the circuit. (Used for "OFF" or stop signals).

Polarity Notice (Important!)
This is a simple switch and LED module. There are no positive/negative electrodes (polarity) to distinguish for the switch terminals (C, NO, NC). You can wire them according to your circuit needs.

However, the built-in LED light does have polarity. It is pre-wired internally to work correctly. You only need to connect the external switch terminals without worrying about the LED's polarity.
Key Specifications:
Material: High-Conductivity Copper

Switch Type: 1NO + 1NC with Integrated LED

LED Colors: Red, Yellow, Blue, Green, White (Multi-Color Options)

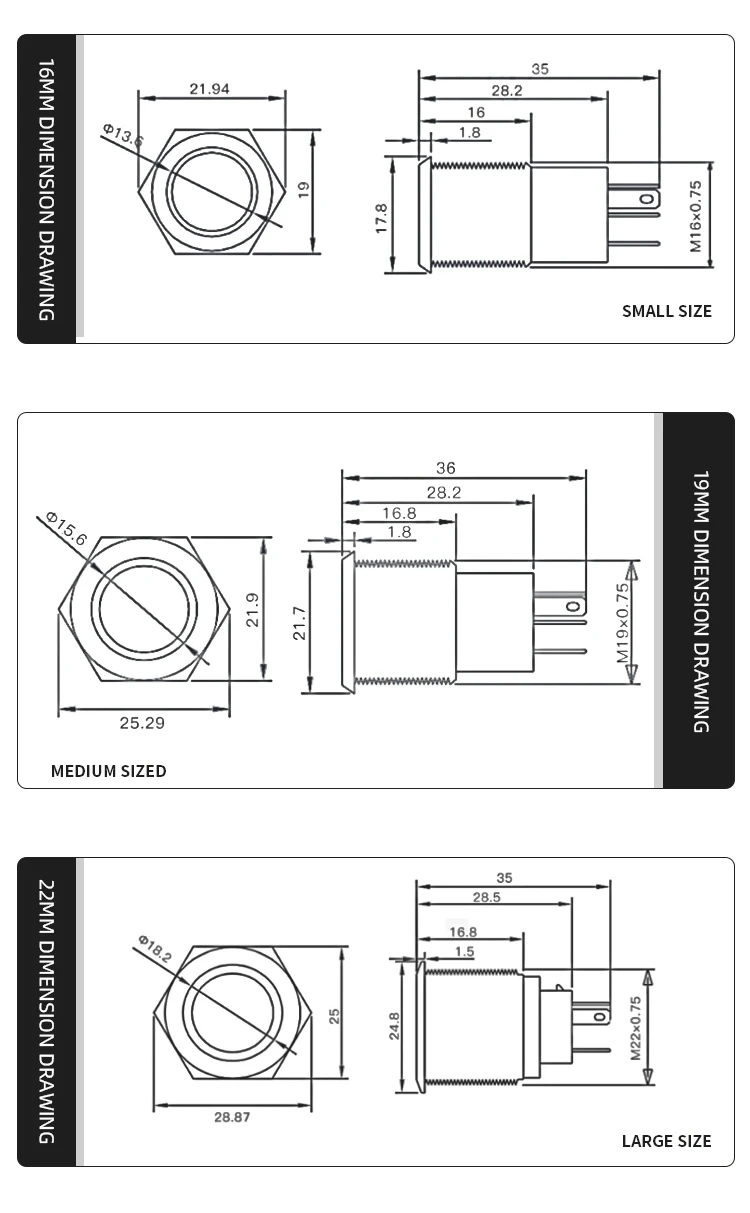

Sizes: 16mm / 19mm / 22mm (Panel Cut-Out Compatible)

Voltage Support: Wide Range 3V–220V (DC/AC Compatible)

Operation Modes: Momentary（Self-reset） or Latching (Self-Locking)
Features:
① Industrial Durability, Universal Use
Crafted from solid metal with a corrosion-resistant finish, this switch is built for long-term reliability in demanding environments. Its flat-head design offers a low-profile, modern look suitable for both industrial control panels and custom DIY projects—from machinery and automotive applications to smart home systems.

② Multi-Color LED for
