SPECIFICATIONS
Brand Name: EARUELETRIC,EARUELETRIC
Certification: VDE,CE,CCC,ce
Choice: yes
Current: 3A,12MM 3A, 16/19/22MM 6A
Customizable LED Colors: Purple/Orange/Flahing Light
Features: self-recovery and self-lock type
High-concerned chemical: None
Is Smart Device: No,NO
Item Type: SWITCHES

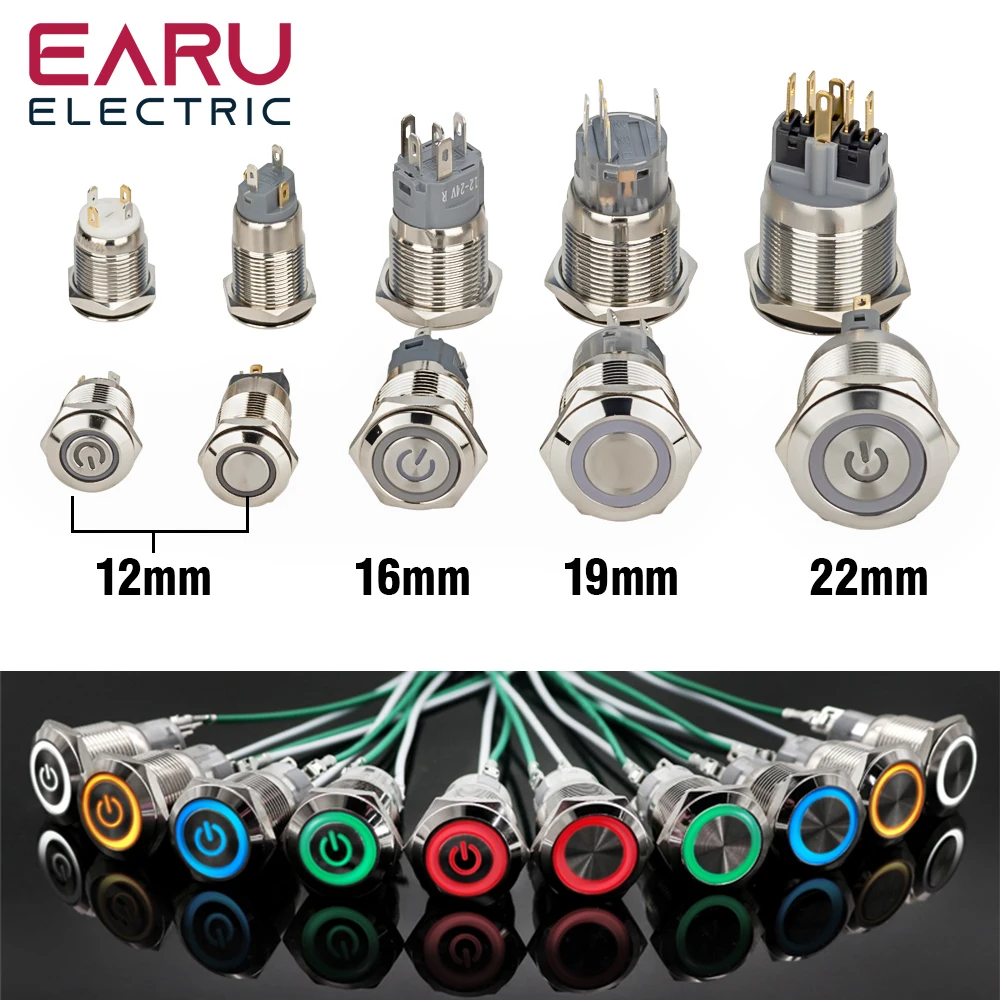

LED Colors: Red Yellow Blue Green White

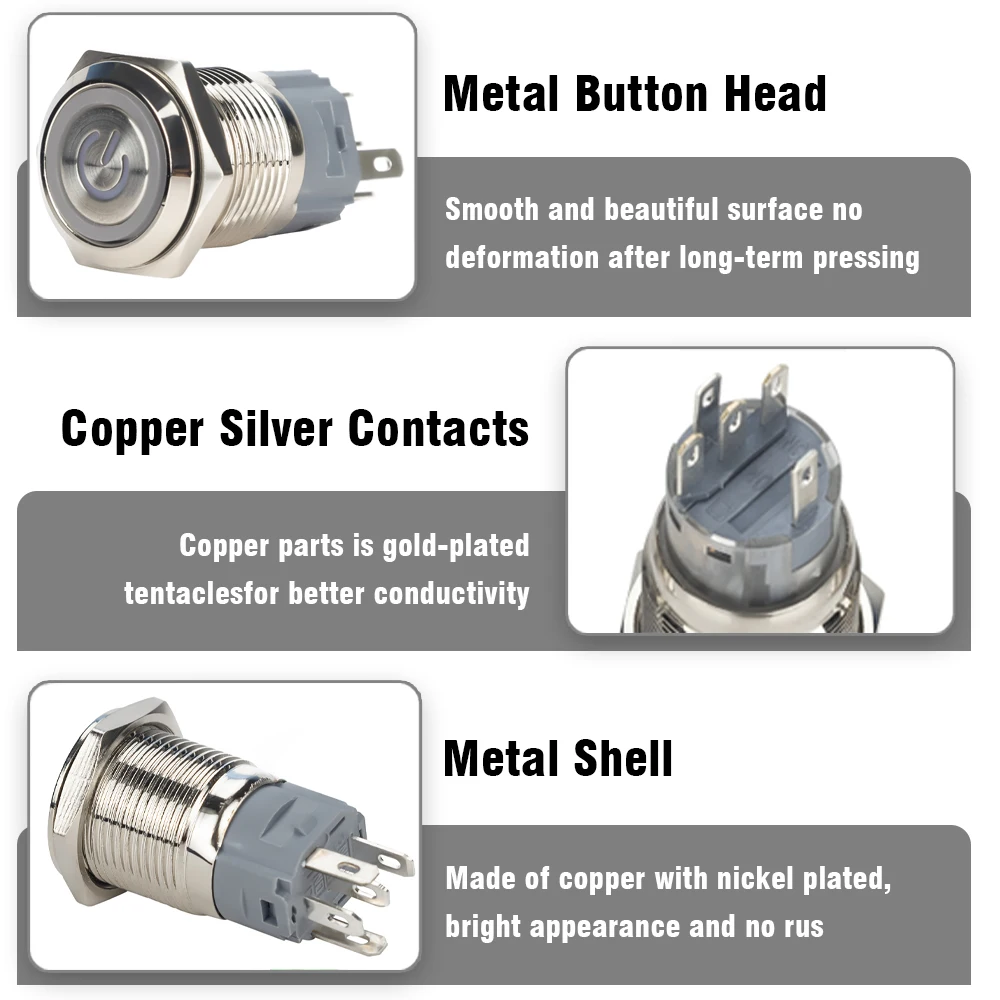

Material: Copper,Copper Alloy
Model Number: EAMPBS-12/16/19/22
Origin: Mainland China,CN(Origin)

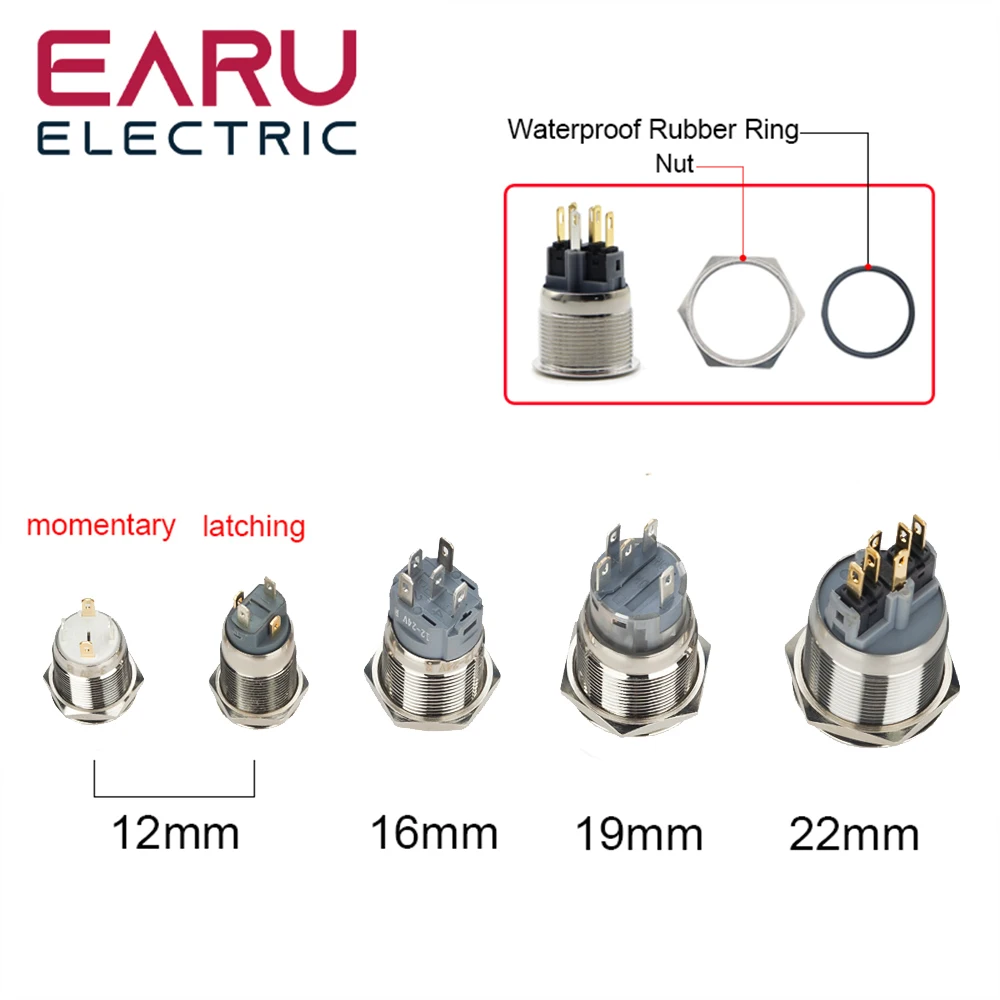

Size: 12mm/16mm/19mm/22mm
Switch Type: Push Button Switch,Push Button Switch
Voltage: 3-6V/9-24V/110-220V(220V)
semi_Choice: yes
Note: the connector needs to be purchased separately

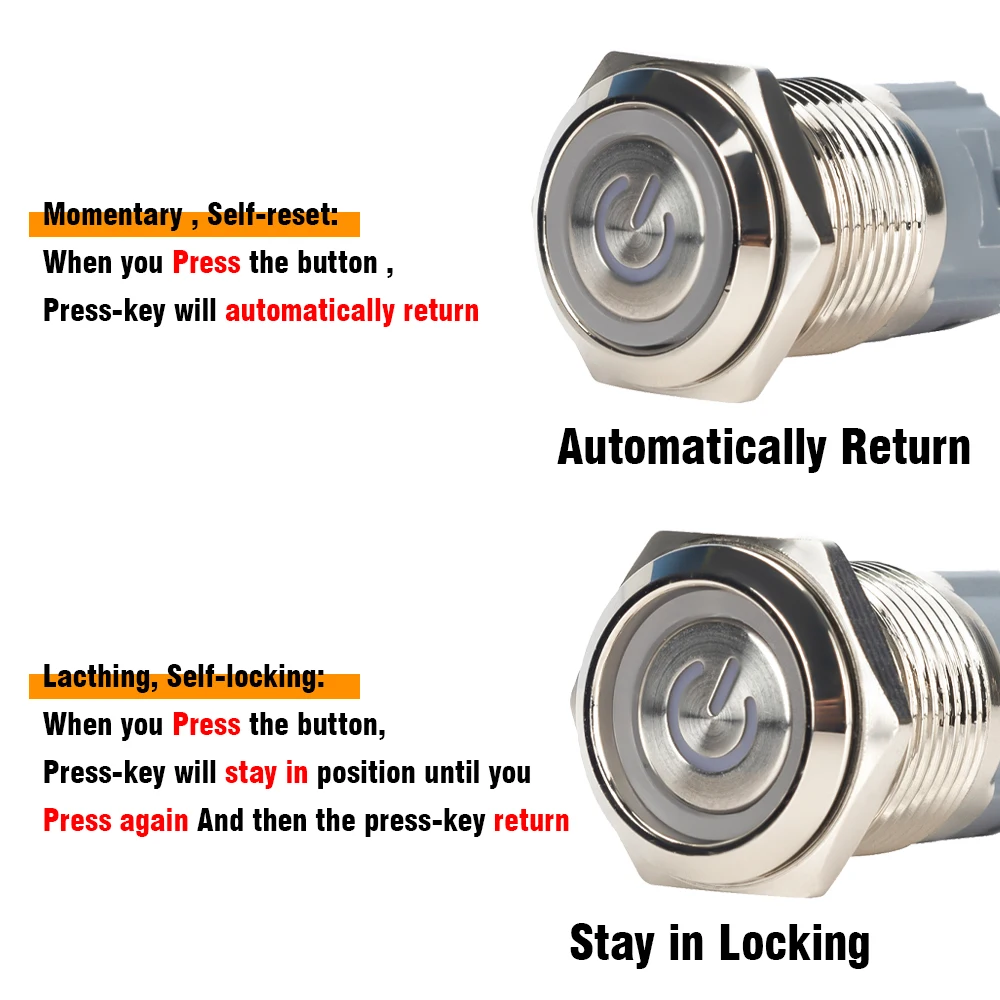

Difference between auto-recovery button and auto-lock button:
1. Self-recovery button: press this button to turn on the power (light on);
Release your hand, the power will appear and turn off automatically (the light goes out)
2. Self-locking button: press the power button, release your hand, and keep the button stationary (lit);
Press the button again to display and turn off the power (the light goes out).

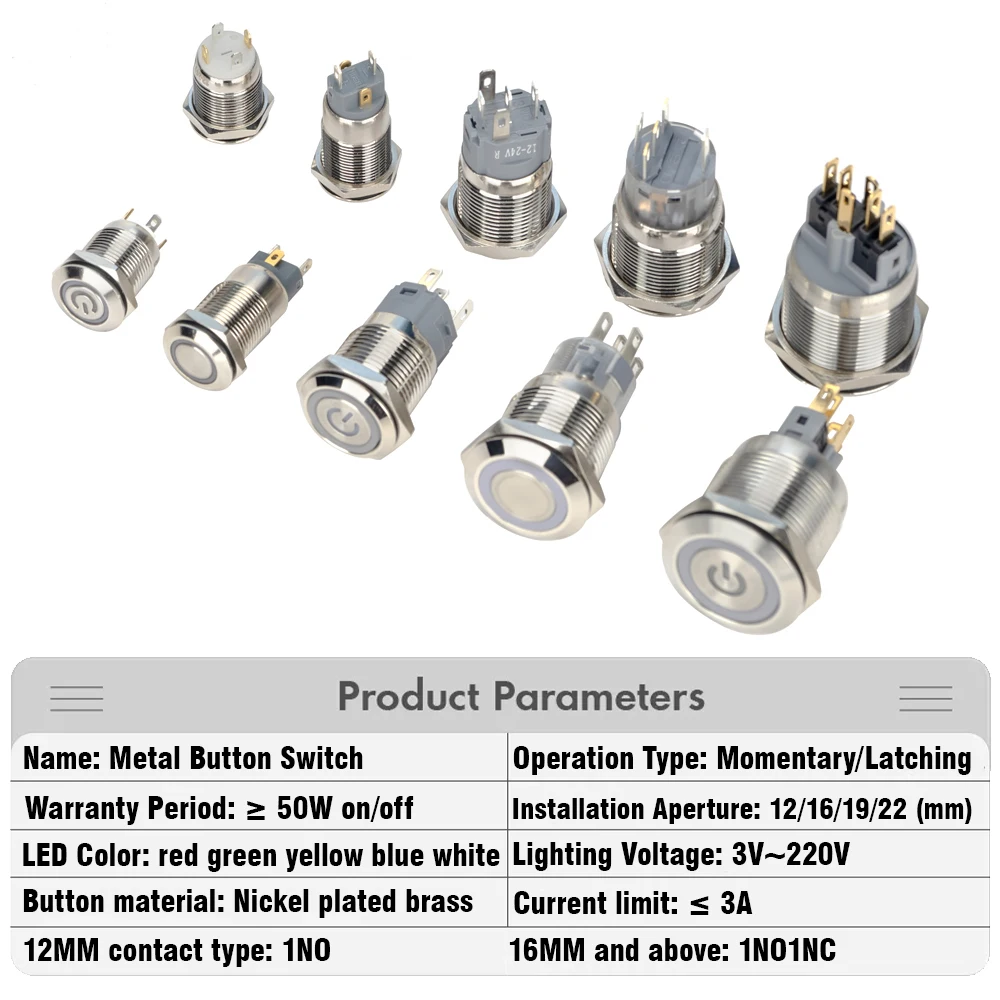

Product parameters
Head type: round head
Housing material: metal
Operation type: Momentary self-reset/fixed self-locking
Emitting color: red / yellow / blue / green / white
Opening size: 12mm/16mm/19mm/22mm1.What does the signal "NC" and "NO" means?
+ : positive pole of the led
- : negative pole of the led
NC : Normal Close
NO : Normal Open
C : Common2.How to connect?
1.Connect " NO " and " C " : The circuit is alway open unless press the button.
2.Connect " NC " and " C " : The circuit is alway close unless press the button.
